Launch Your Adventure
Description
The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-38/1080 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a 38mm Forward Seal Disc during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 18-38mm Delay Drilling Tool (RDDT), Not Included. The 18-38mm Delay Drilling Tool(RDDT) is available in the AeroTech Accessories section of this website.
This RMS motor reload utilizes RCSs exclusive White Lightning™ aerospace grade composite propellant formulation, which produces a gorgeous bright white flame with lots of dense white smoke and a throaty roar at lift-off.
The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. This AeroTech motor is U.S. mailable with no hazmat fee! The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 2 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 2 certification is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
The First USPS Mailable J Motor Reload has finally arrived! Yes, this 38mm reload can ship USPS Parcel Post with no HAZMAT Fee!!! Reload kit for RMS-38/1080 hardware.
38mm STD Retaining Ring required for assembly.
Level 2 certification required. Please respond to your Order Confirmation with proof of Certification level otherwise your package may be delayed or canceled. A picture or scan of your NAR and/or Tripoli membership card or a letter/email from NAR and/or Tripoli is fine as well.

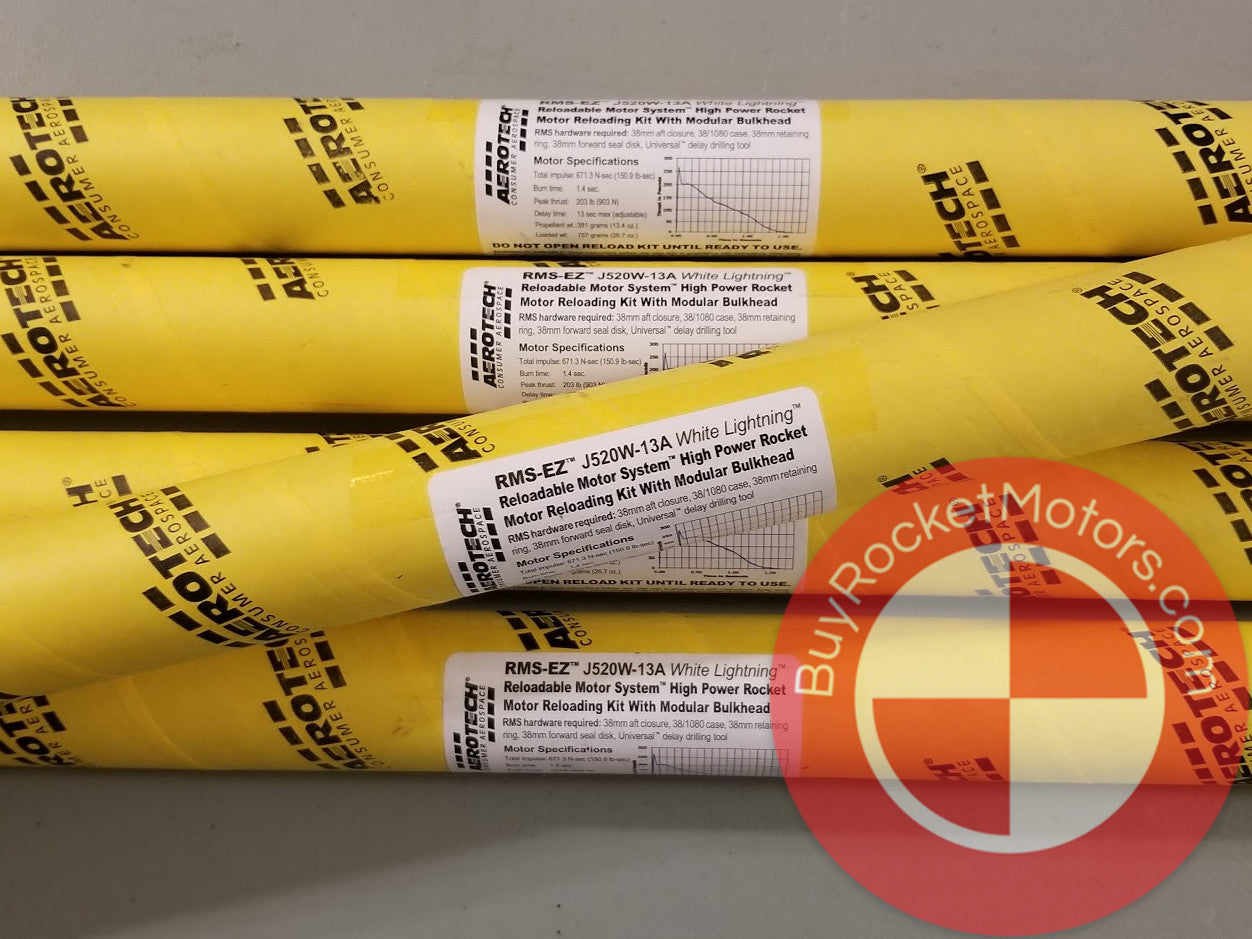

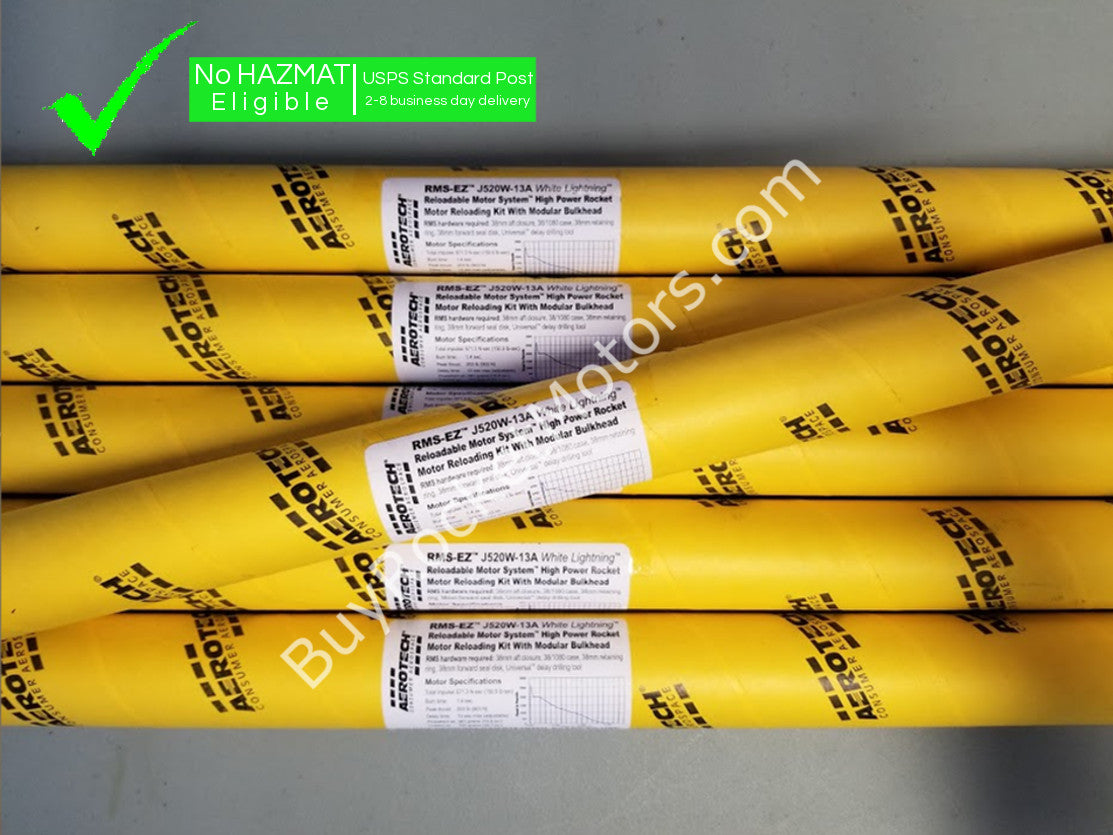

This is the brand new RMS packaging for this reload. It's packaged in a protective yellow tube and contains an adjustable 13 second delay! No need to worry about having the exact delay, just drill this 13 second delay down using the RMS Delay Drilling Tool (RDDT) here.
Any pictures displayed are for reference only and may be different from the product shown for sale. Customers are responsible for verification.
Please contact us with any questions or concerns.

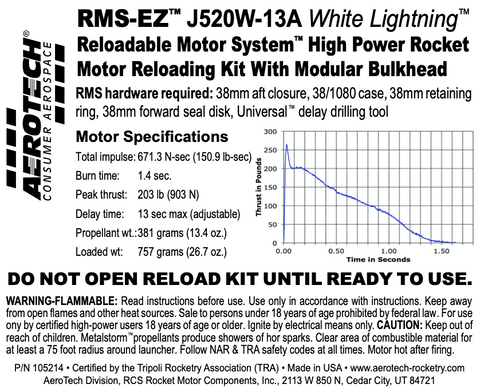

Specifications:
Manufacturer: AeroTech
Designation: J520W
Common Name: J520
Motor Type: Reload
Motor Case: RMS-38/1080
Delays: 5,7,9,11,13
Diameter: 38.0 mm
Length: 502.0 mm
Total Weight: 757.4 g
Prop. Weight: 381.0 g
Avg. Thrust: 487.4 N
Max. Thrust: 902.7 N
Total Impulse: 671.3 Ns
Burn Time: 1.38 s
Propellant: White Lightning
Cert. Org.: Tripoli Rocketry Association, Inc.
Total Impulse
Average Thrust
Maximum Thrust
Burn Time
