High-Power Motor Purchase Requirements
The sale of 'G' motors and larger and all model and high power RMS reload kits to persons under 18 years of age is currently prohibited by federal law. Individuals must be 18 years of age to purchase high power hardware. Proof of age (such as a copy of a driver's license) must accompany all orders for 'G' and larger motors and all RMS reload kits. The consumer must be a current member in either the National Association of Rocketry or Tripoli Rocketry Association and be certified Level 1 (H,I), or Level 2 (J,K,L), or Level 3 (M,N,O) high power user, 18 years of age or older to purchase all high power reload kits.
Please note that orders requiring additional documentation cannot be shipped without a copy of a NAR or Tripoli Rocketry Association Level Certification card, or evidence (business license or purchase order on company or school letterhead) that you are a legitimate business or academic customer.
Launch Your Adventure
Description
The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-75/5120 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a stainless steel forward seal disc (75FSDSS) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.
The M225WS-PS uses AeroTech’s high-performance Super White Lightning propellant formulation producing the brightest possible white flame and brilliant exhaust plume at lift-off, plus a higher “specific impulse” or Isp and higher thrust level than our standard White LightningTM propellant. This new motor delivers an impressive 5,205 N-Sec. (1,170.2 lb.-Sec.) of total Impulse, with a burn time of 2.32 seconds and a peak thrust of 2,418 N (543.6 lbs.). The reload kit propellant weight is 2,331 g (5.13 lbs.) with an all-up motor system weight of 4,685 g (10.32 lbs.). This Super White Lightning rocket motor produces lots of bright white smoke and a real throaty roar at lift-off, plus tracking smoke, however it is a “plugged” motor that does not include an ejection charge, requiring the utilization of an electronically-activated recovery system. The M2225WS-PS rocket motor is perfect for Level 3 certification attempts or extreme high performance flights.
The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 3 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 3 certification is received.
Certified by the Tripoli Rocketry Association (TRA).

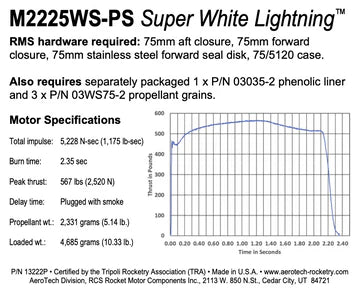

Specifications:
Manufacturer: AeroTech
Designation: M2225WS
Common Name: M2225
Motor Type: Reload
Motor Case: RMS-75/5120
Delays: P
Diameter: 75.0 mm
Length: 692.0 mm
Total Weight: 4695.0 g
Prop. Weight: 2331.0 g
Avg. Thrust: 2239.2 N
Max. Thrust: 2418.4 N
Total Impulse: 5205.0 Ns
Burn Time: 2.32 s
Propellant: Super White Lightning
Cert. Org.: Tripoli Rocketry Association, Inc.
Total Impulse
Average Thrust
Maximum Thrust
Burn Time
